Heavy-Duty Gravity Conveyor Starter Bundle

5' or 10' section of 1.9" diameter roller conveyor with 2 "H" type permanent floor supports and fixed angle end stop

• Length: 5' or 10' options
• Width: 18"
• Between Frame Width: 15"
• Frame: 3-1/2" deep x 1-1/4" flange x 12 gauge galvanized steel channel with bolt-in cross braces
• Rollers: 1.9" diameter x 16 gauge galvanized steel tubing. Oiled ball bearings both ends.
• Roller Centers: 3"
• Axles: 7/16" hex steel, spring loaded for easy installation or removal on 3" centers

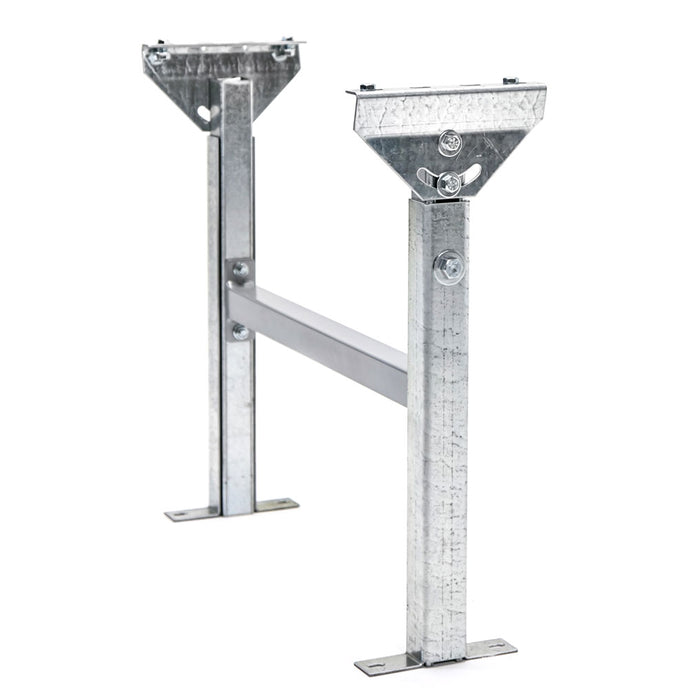

• Supports: Comes with 2 "H" type permanent floor supports, 23” - 38” high and 18” wide
• Top bracket adjustable for pitch, boots for leveling with holes for lagging to floor.
• Formed 12 gauge galvanized steel construction.
• Supports shipped knocked down.
• Fixed Angle End Stop: Angle end stop mounts to end of conveyor and bolts to top flange of conveyor side channels. Hardware included.

*Note: Depending on your unique needs for capacity, you may require an additional support. Please refer to our capacity chart for full details.
