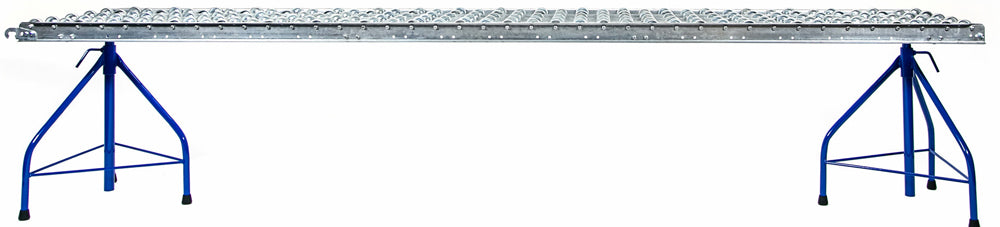

Portable Skatewheel Gravity Conveyor Starter Bundle
5' or 10 'section of aluminum skatewheel conveyor with 2 portable tripod supports and fixed angle end stop.

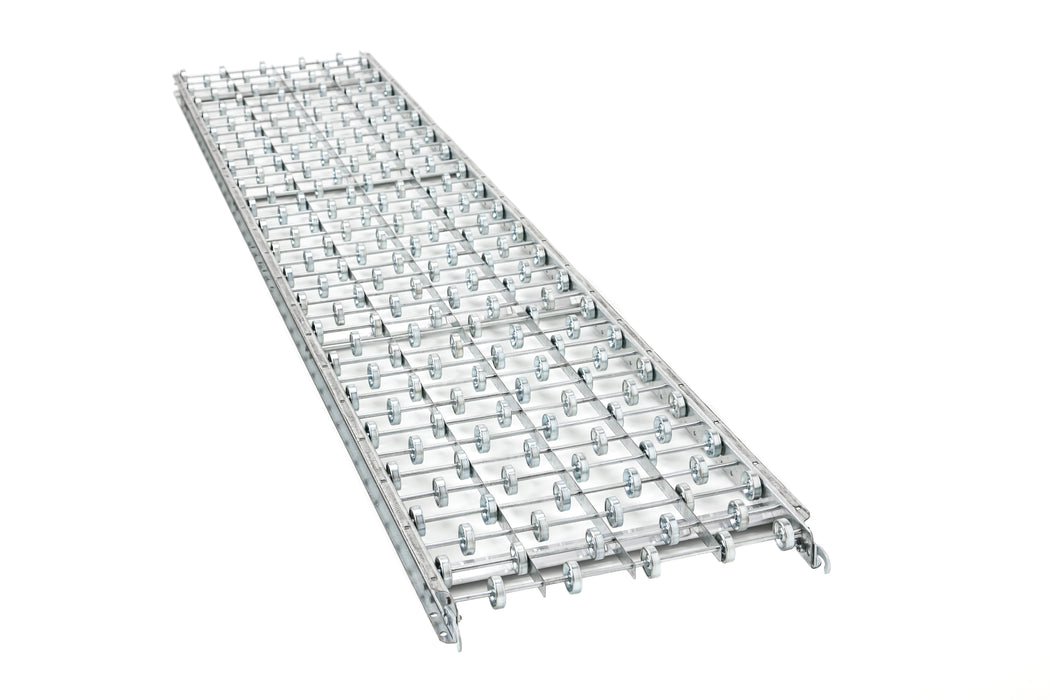

• Length: 5' or 10' options
• Width: 18"
• Frame: 2-1/2" deep x 1" flange x 12 ga. 0.112" extruded aluminum channel with bolt-in cross braces.
• Wheels: : Aluminum
• Couplings: Hooks one end, studs on opposite end
• Axles: 1/4" dia. steel, threaded one end with locknut, spaced on 3" centers. Spacers are zinc-plated steel.

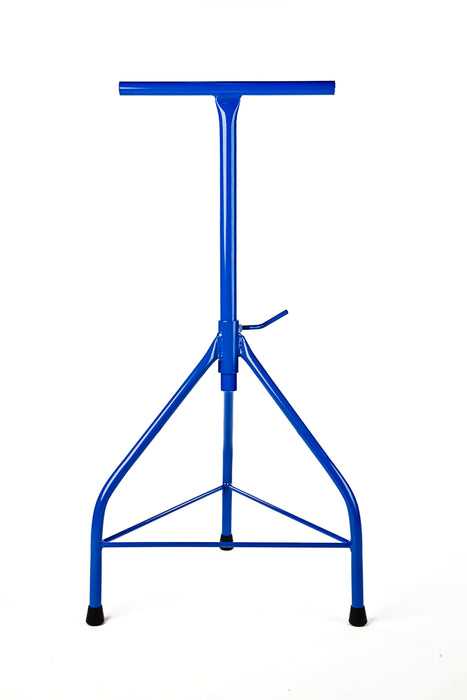

• Supports: Comes with 2 portable tripod supports, 24” - 42” high and 18” wide

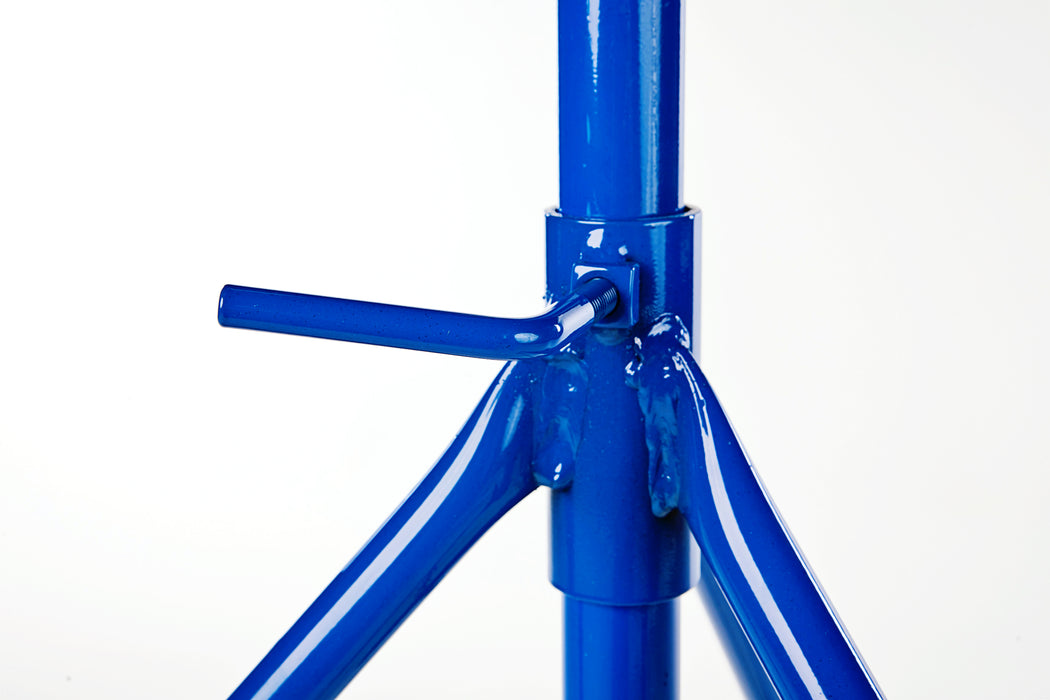

• Welded tubular construction with hand key adjustment locking.
• Fixed Angle End Stop: Angle end stop mounts to end of conveyor and bolts to top flange of conveyor side channels. Hardware included.
• 16 wheels per foot.
*Note: Depending on your unique needs for capacity, you may require an additional support. Please refer to our capacity chart for full details.
